Description
BC-8002 is a two-part, fast-setting urethane tooling resin that cures (RTV) to a gray, Shore D85 plastic. This filled system offers low viscosity, low exotherm and minimal shrinkage and is ideal for constructing patterns, prototypes, duplications, negatives, low temperature vacuum form tools, tracing models, and other tooling applications.
WARNING: This product can expose you to chemicals including Benzene, Cumene and Dibutyl Phthalate which are known to the State of California to cause cancer and/or reproductive harm. For more information, go to .
FOR INDUSTRIAL/PROFESSIONAL USE ONLY.
| Property | Value |
|---|---|
| Mix Ratio by Weight | 1A : 1B |
| Mix Ratio by Volume | 1A : 1B |
| Shore Hardness | D85 |
| Pot Life | 5–6 min |
| Demold Time | 1–2 hr |
| Cured Color | Gray |
| Mixed Viscosity | 2,350 cP |
| Specific Gravity | 1.8–1.9 |
| Specific Volume | 15 in³/lb |
| Linear Shrinkage | 0.0008 in/in |
| Heat Deflection Temp. | 179°F |
| Tensile Strength | 4,900 psi |
| Flexural Strength (5% Strain) | 6,700 psi |
| Compressive Strength | 8,300 psi |
Notes: Shake or stir Part A & Part B before use. Demold time varies with thickness of casting — thinner castings take longer to demold.
Kit Components

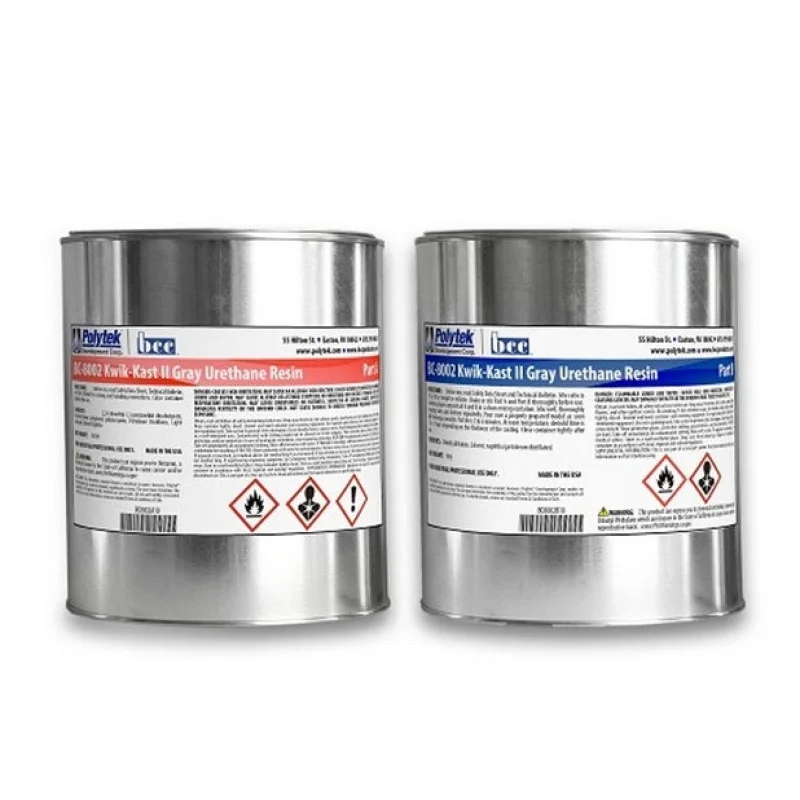

| BC-8002 Kwik-Kast II Gray Urethane Resin | Components |
|---|---|
| 20-lb kit includes: | 10 lb of BC-8002 Part A (~1 gallon) 10 lb of BC-8002 Part B (~1 gallon) |
